Tiny 45 Tiny 45 100.s

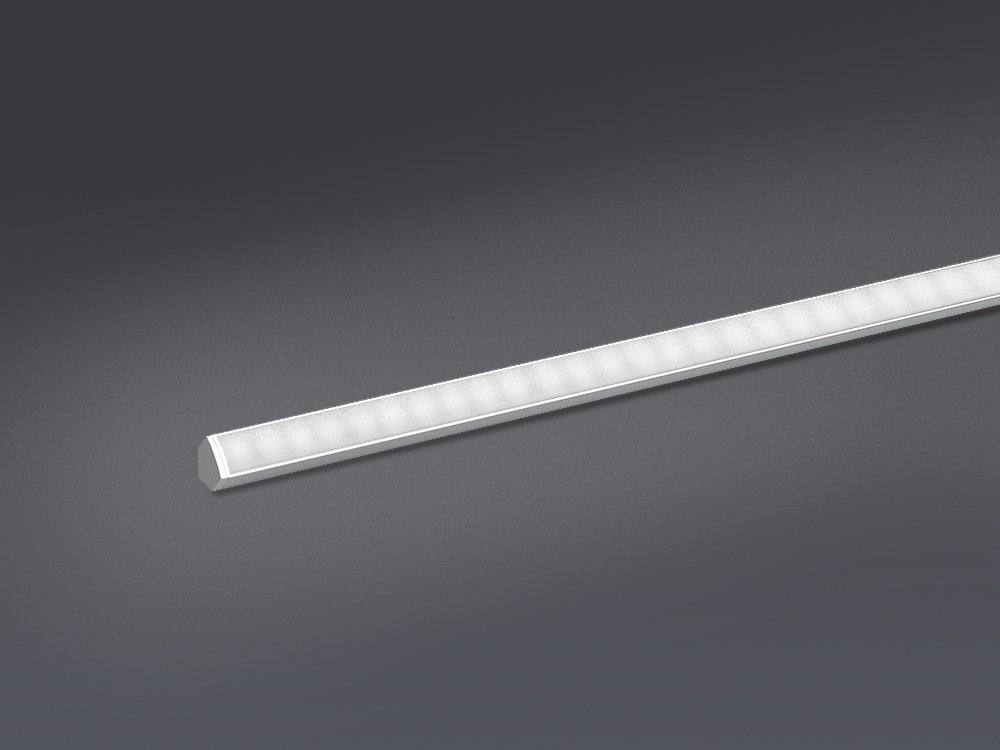

Tiny 45 100.s belongs to the LED Profiles category of the Folio® Custom series and it has a defined section of 11,1 x 11,4 millimeters and length up to 3000 millimeters.
The LED profiles offer great compositional freedom and are suitable for both small and large design applications.
The profile provides for the 45° installation in order to direct the light beam and it is perfect in displays or shelves application.
The flat polycarbonate diffuser with satin finish spreads an intense light over the entire surface.
The LED circuit used is made up of 100 LEDs per meter and it is made using high efficiency Nichia LEDs (over 100 lumen/ watt) with a guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50. Tiny 45 100 is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
There are two installation options available: by glue/ silicone or magnets. The different fixing systems allow you to position the LED profile on the wall, ceiling, or lay-on.
The power cable can come out from the cap or from the side of the profile.
Mounting and size
Wall max size11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in
Ceiling max size11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in
Flat max size11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in
Consumption: 25 W/m
Input luminous flux: 2000 lm
Output luminous flux: 518 lm/ft
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
11,4 mm | 0.45 in
0,15 kg/m | 0.1 lbs/ft
Magnet / Silicone/Glue
Environment of use
On request: Damp location (UL Listed)
Aluminum, Polycarbonate, LED
On request: RAL/ NCS/ Pantone
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)
L90 > 60.000 hours at 50° Celsius
Blue light risk group (200mm)
2700K/ 3000K/ 3500K/ 4000K/ 5700K
On request: 2000K/ 2200K/ 2500K/ 6500K
