Stocky Stocky 25 Big 180.o

Stocky 25 Big 180.o belongs to the LED Profiles category of the Folio® Custom series and it has a defined section of 21 x 26,7 millimeters and length up to 3000 millimeters.
The LED profiles offer great compositional freedom and are suitable for both small and large design applications.

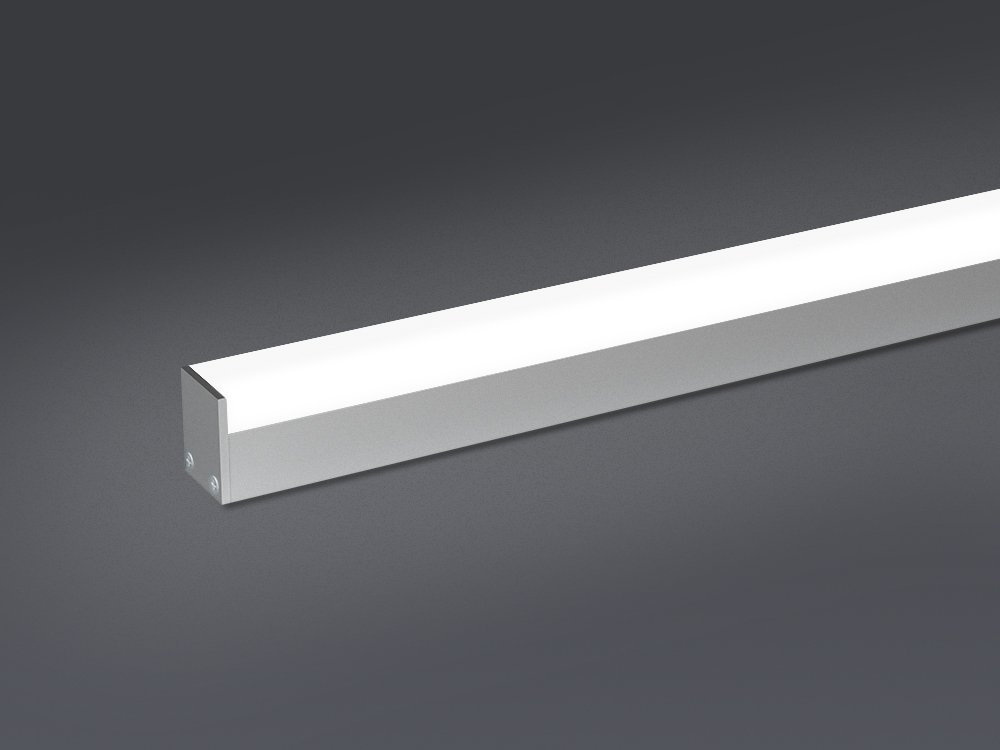

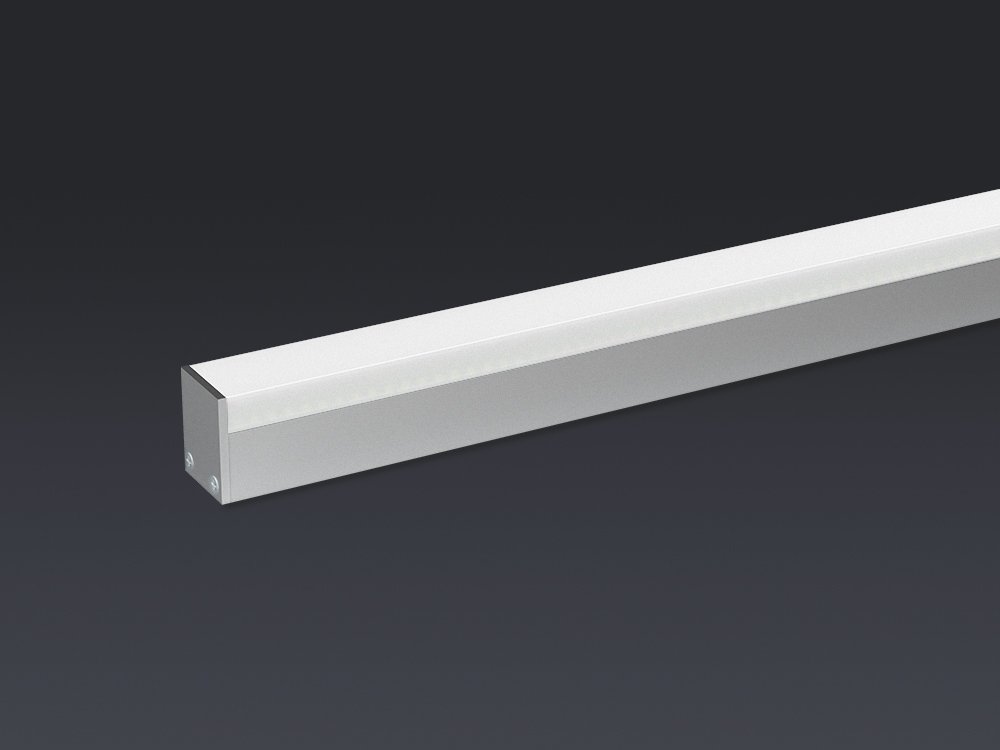

The polycarbonate diffuser with opal finish spreads the light evenly over the entire surface and edges, creating an intense and enveloping effect. The diffuser with double-satin finish is available on request.
The light beam is directed thanks to the internal aluminum profile which allows the light to be projected at a 25° angle.
The LED circuit used is made up of 180 LEDs per meter and it is made using high efficiency Nichia LEDs (over 100 lumen/ watt) with a guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50. Stocky 25 Big 180 is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
There are two installation options available: by snap profile or magnets. The different fixing systems allow you to position the LED profile on the wall, ceiling, suspended or lay-on.
The power cable can come out from the cap, from the side or from the back of the profile.

Mounting and size
  • Wall

    Wall max size

    21 × 26.7 × 3000 mm | 0.83 × 1.05 × 118.11 in
  • Suspended

    Suspended max size

    21 × 26.7 × 3000 mm | 0.83 × 1.05 × 118.11 in
  • Ceiling

    Ceiling max size

    21 × 26.7 × 3000 mm | 0.83 × 1.05 × 118.11 in
  • Flat

    Flat max size

    21 × 26.7 × 3000 mm | 0.83 × 1.05 × 118.11 in
  • LED input
    24V DC

    Static CCT
    Consumption: 21.5 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: 351 lm/ft

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    26,7 mm | 1.05 in

    Weight
    0,5 kg/m | 0.3 lbs/ft

    Fixing
    Snap / Magnet

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54

  • Materials
    Aluminum, Polycarbonate, LED

    Aluminum finishes
    Ox silver
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Opal
    On request: double-satin

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700K/ 3000K/ 3500K/ 4000K/ 5700K
    On request: 2000K/ 2200K/ 2500K/ 6500K

    MacAdam
    3 Step

Available processes

Led profile curved

Available certifications
