Pico Pico 26.a

Pico 26.a belongs to the patented Folio Spot.Mate® collection.
The product is composed of an aluminum body with a diameter of 26 millimeters supported by the bezel with a standard black oxidized finish, which can be customized on request. The LED Folio circuit is composed by high efficiency Nichia diode with guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50 and by optics available with different diffusion angles. Pico 26.a is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.

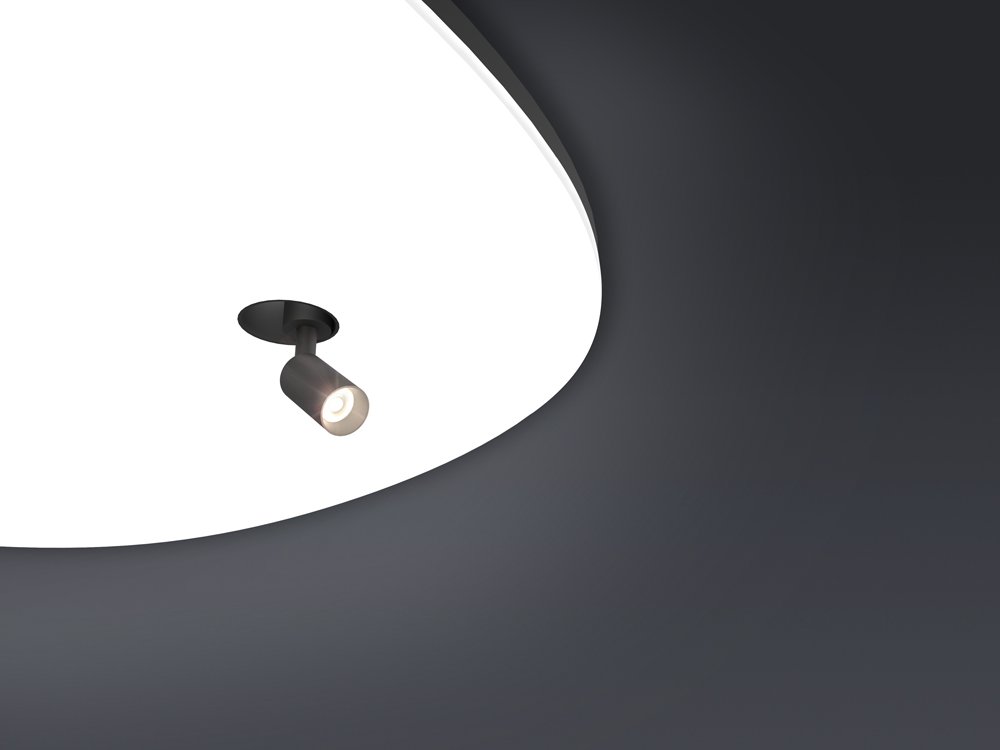

The compact Pico 26.a spot can be rotated 360° and it can be adjusted with an angle of ± 90°. Thanks to the fluid and precise joint, the light beam can be directed enriching the Folio® lighting solutions.
The Folio® Custom lighting bodies can integrate one or more accessories from the Spot.Mate® collection. The integration makes the patented system complete and performing in all its applications and it enhances the combination between diffused light and adjustable point light.

Mounting and size
  • Spot.Mate

    Spot.Mate max size

    26 mm | 1.02 in

  • LED input
    24V DC

    Static CCT
    Consumption: 2.1 W @ 700 mA
    Output luminous flux: 220 lm

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    87 mm | 3.42 in

    Weight
    0,2 kg | 0.4 lbs

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40

  • Materials
    Aluminum, Lens, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

  • LED type
    Nichia

    LED lifespan
    About 50.000 hours

    CCT
    2700K/ 3000K/ 3500K
    On request: 2000K/ 2200K/ 2500K/ 4000K/ 5000K

    MacAdam
    3 Step

Available certifications
