Folio Visual Zero 40 + Folio Visual

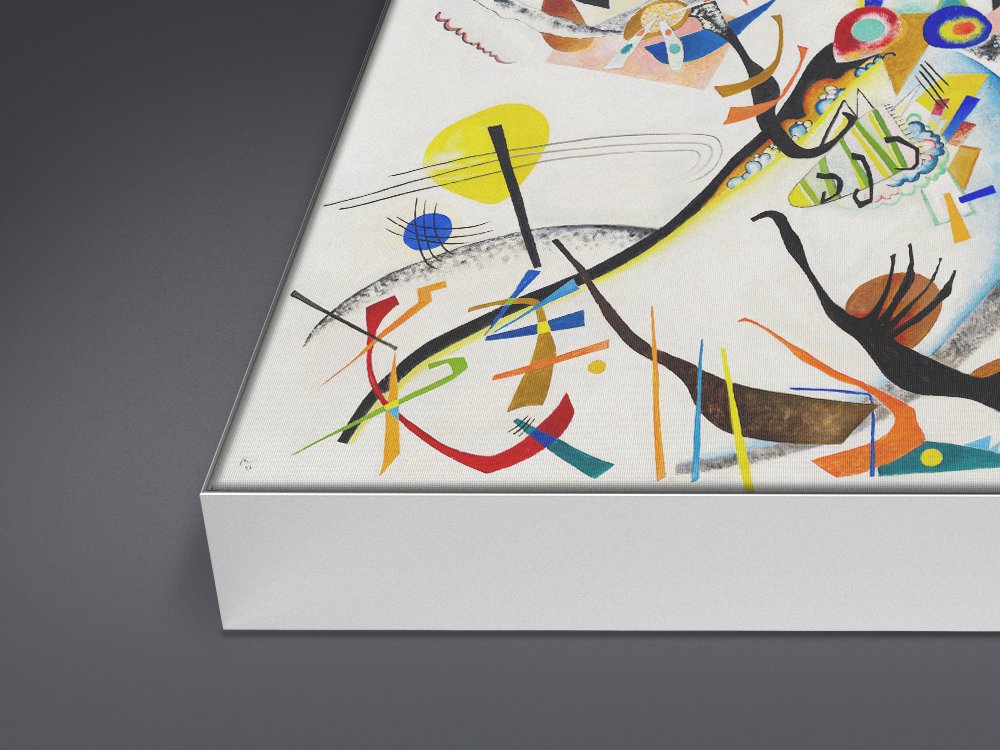

Zero 40 + Folio® Visual belongs to the Folio® Visual family and is characterized by a thickness of 40 millimeters and by customizable graphics printed at high resolution on the diffuser fabric.
The Zero + Folio® lighting system is custom made and it is possible to customize its size, shape and graphics, as well as make special processing on it, such as through holes with round or square section.
The product is composed of the Zero aluminum frame, which can be shaped to obtain rounded corners or create three-dimensional installations, inside which the Folio® Base 1 panel is positioned with a transparent methacrylate plate (“source”) laser processed following the engraving algorithm customized Folio® which allows to obtain a guaranteed a 97% of light homogeneity. Thanks to the PVC gasket sewn on the perimeter, the flexible white or printed fabric, also available with acoustic properties, is tensioned on the aluminum profile and it diffusing the light in a natural and homogeneous way, covering large surfaces without visible joints.
The Zero 40 system can be installed on the wall, on the ceiling and suspended and it can cover surfaces up to 3000 x 2000 millimeters.
In addition to the finishes of the diffuser and the aluminum frame, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Zero 40 + Folio® Visual can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size
  • Wall

    Wall max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • Suspended

    Suspended max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • Ceiling

    Ceiling max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • LED input
    24V DC

    Static CCT
    Consumption: 22 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: White Fabric < 45% than the luminous flux input + x% according to the type of printing

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    40 mm | 1.58 in

    Weight
    15 kg/m² | 3.1 lbs/ft²

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54

  • Materials
    Aluminum, Methacrylate, Stretch Fabric, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    White stretch fabric/ printed stretch fabric
    On request: white acoustic stretch fabric/ printed acoustic stretch fabric

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
    On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW

    MacAdam
    3 Step

Available processes

Zero curved

Zero drilled circular

Zero drilled square

Zero shaped

Available certifications
